Cargo baskets
Our DNV-certified offshore cargo baskets are a vital component of OEG's global fleet of Cargo Carrying Units (CCUs). Built to withstand harsh offshore environments, they comply with DNV 2.7-1, BS EN 12079, and ISO 10855 standards.
Available for rental or sale, OEG's durable baskets ensure safe and efficient cargo handling across all stages of offshore operations, including seismic surveys, drilling, field installations, maintenance, and decommissioning.
Certifications
Key features
Key features
- Offshore cargo baskets c/w certified lifting slings and shackles as standard
- Forklift pockets
- Stackable
- Internal tie down points
Optional features
Optional features
- Guide rails and supports can be provided to suit customer requirements
- GPS tracking*
- Custom design and modifications available for purchase
Integrity services
Enhancing asset performance with expert maintenance, compliance support, and safety‑driven lifecycle care.
24/7 Certification document portal
Access your certification documents anytime with our always‑available portal for fast, seamless verification whenever you need it.
Comprehensive testing and inspection
Experienced engineers deliver full testing and inspection services for your offshore CCU and tank assets.
Maintenance and refurbishment
Our skilled personnel and purpose‑built facilities deliver high‑quality maintenance and refurbishment servcies.
| Type | External dimensions (LxWxH) (mm) |
Internal dimensions (LxWxH) (mm) |
Tare weight (kg) |
Payload (kg) |
Max gross weight (kg) |
|---|---|---|---|---|---|
|

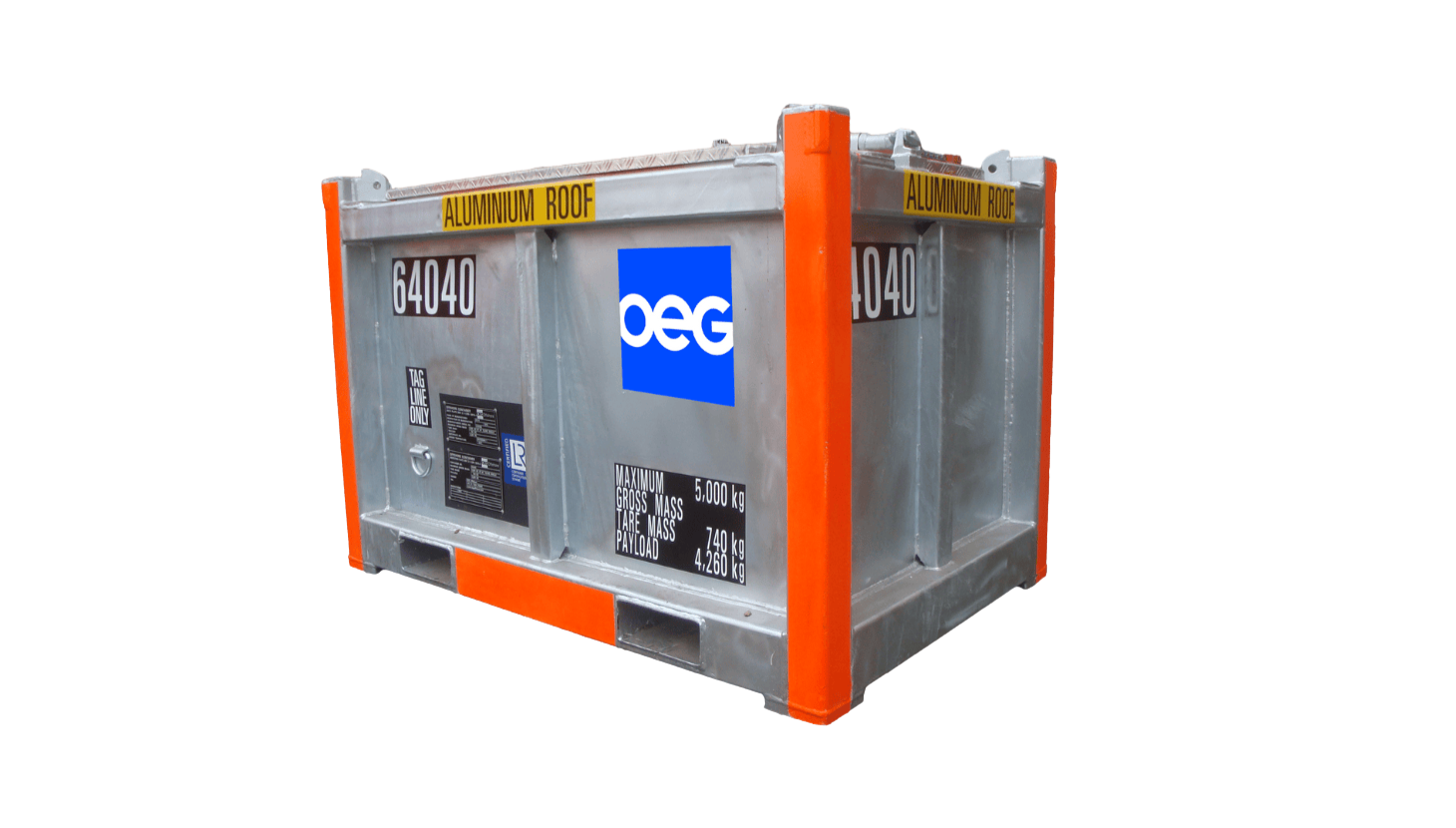

Type: 5ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 800 |
Payload 4,150 |
Max gross weight 5,000 |
|
Type: 8ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 700 |
Payload 5,000 |
Max gross weight 5,700 |
|
Type: 8ft x 8ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 2,177 |
Payload 11,430 |
Max gross weight 13,608 |
|

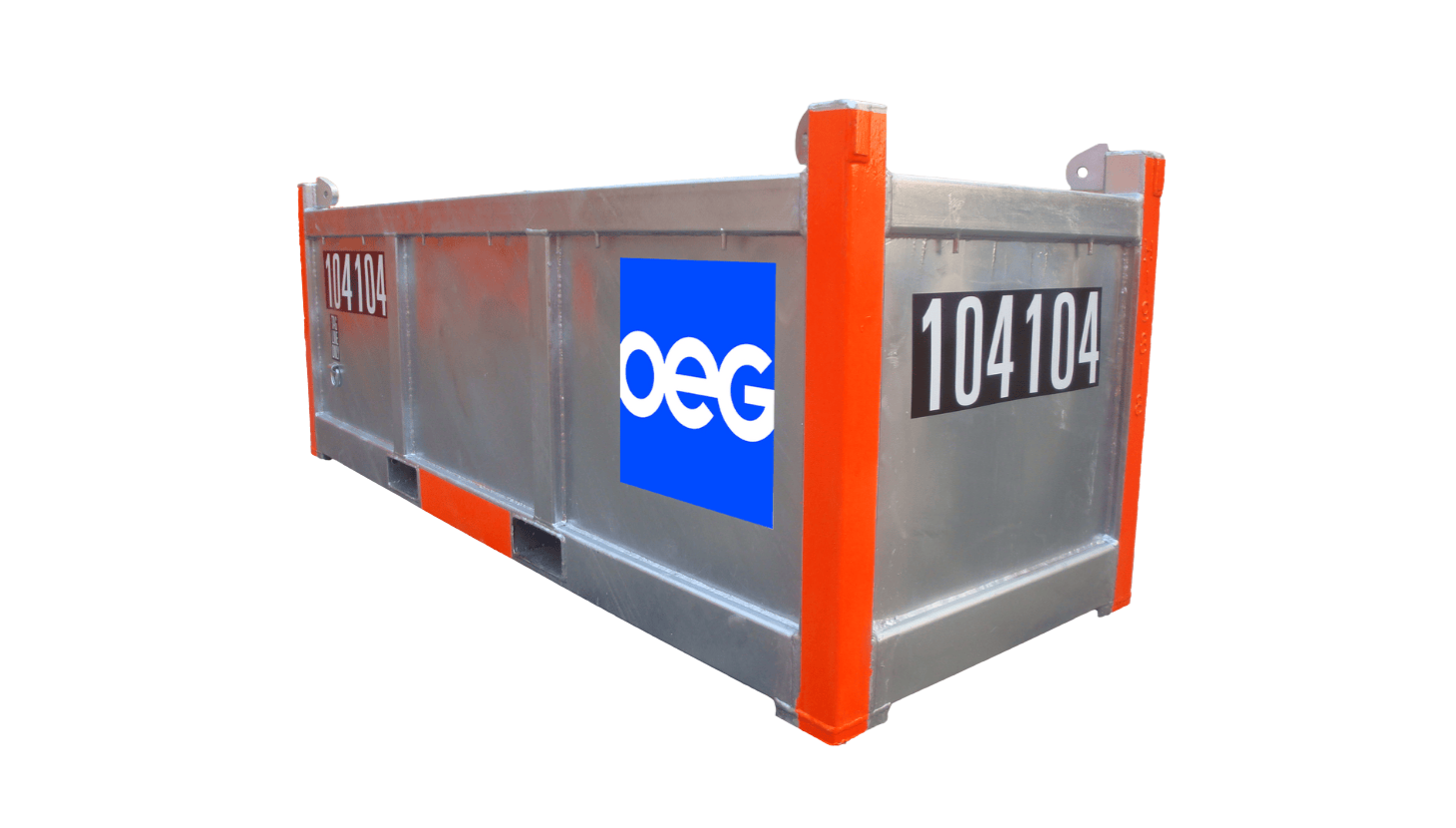

Type: 10ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 790 |
Payload 6,000 |
Max gross weight 6,790 |
|
Type: 10ft x 5ft 2-Door pallet cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 1,715 |
Payload 4,137 |
Max gross weight 5,851 |
|

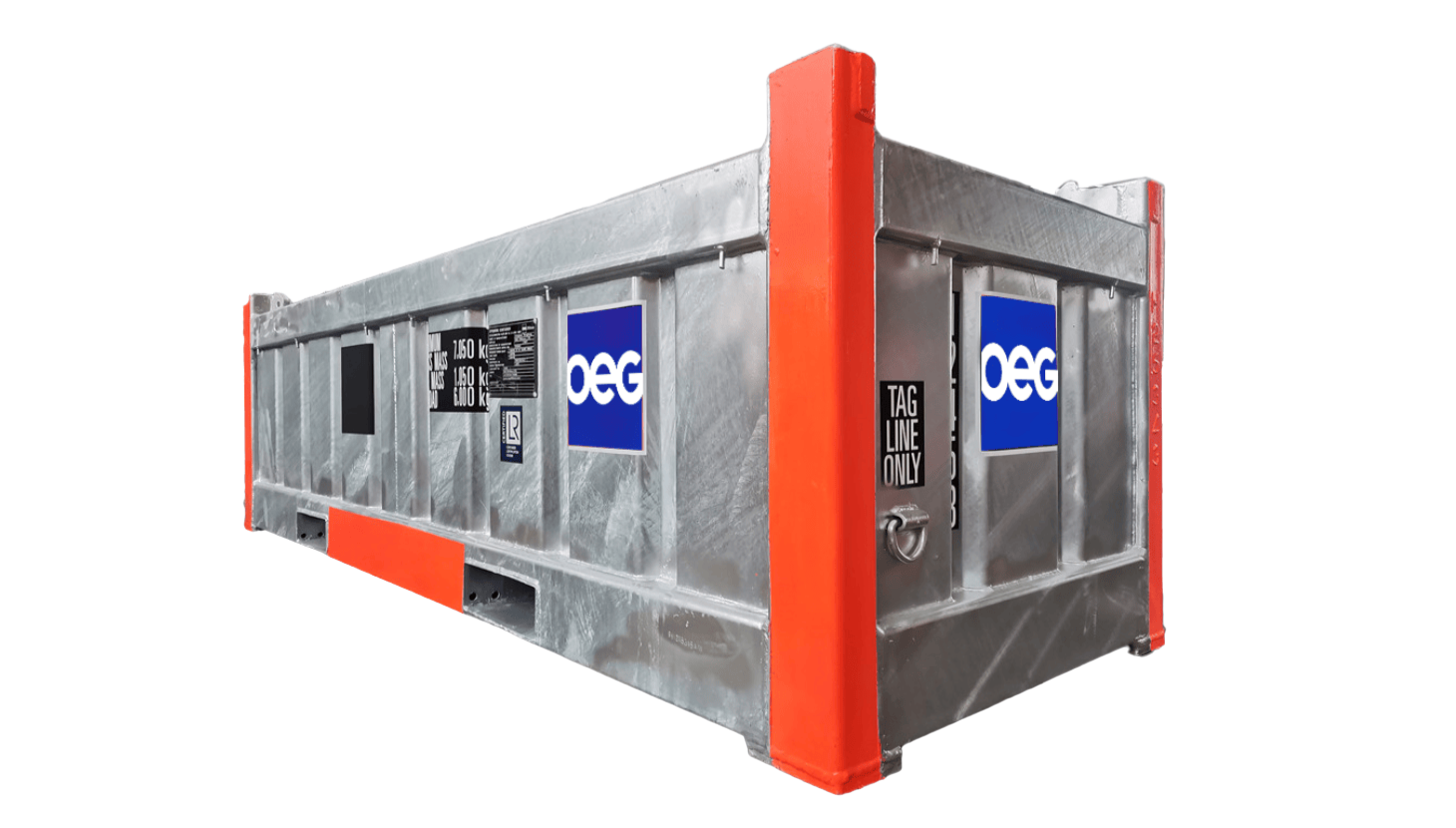

Type: 12ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 900 |
Payload 6,000 |
Max gross weight 6,900 |
|
Type: 14ft x 6ft Expanded metal basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 1,678 |
Payload 8,913 |
Max gross weight 10,594 |
|
Type: 15ft x 5ft Swing end basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 3,175 |
Payload 9,072 |
Max gross weight 12,257 |
|
Type: 16ft x 8ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 1,210 |
Payload 7,000 |
Max gross weight 8,210 |
|
Type: 20ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 1,410 |
Payload 8,000 |
Max gross weight 9,410 |
|
Type: 24ft x 8ft Expanded metal basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 3,197 |
Payload 10,432 |
Max gross weight 13,630 |
|
Type: 53ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 3,700 |
Payload 12,000 |
Max gross weight 15,000 |
|
Type: 60ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 4,920 |
Payload 11,080 |
Max gross weight 1,600 |
|
Type: 67ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 8,618 |
Payload 11,794 |
Max gross weight 20,412 |
|
Type: 78ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 5,800 |
Payload 14,000 |
Max gross weight 19,800 |
|
Type: 92ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 10,254 |
Payload 10,157 |
Max gross weight 20,412 |
E & OE - All dimensions and weights are accurate at the time of creation. Please check exact specifications of units when ordering.
| Type | External dimensions (LxWxH) (mm) |
Internal dimensions (LxWxH) (mm) |
Tare weight (kg) |
Payload (kg) |
Max gross weight (kg) |
|---|---|---|---|---|---|
|
Type: 4ft x 4ft x 2ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight 350 |
Payload 3,000 |
Max gross weight 3,350 |
|
Type: 4ft x 4ft x 4ft Cargo basket |
External dimensions (LxWxH) (mm) x x |
Internal dimensions (LxWxH) (mm) x x |
Tare weight |
Payload |
Max gross weight |
E & OE - All dimensions and weights are accurate at the time of creation. Please check exact specifications of units when ordering.
Request a quote
For container and tank rental pricing details or custom fabrication questions, please reach out to our team.
